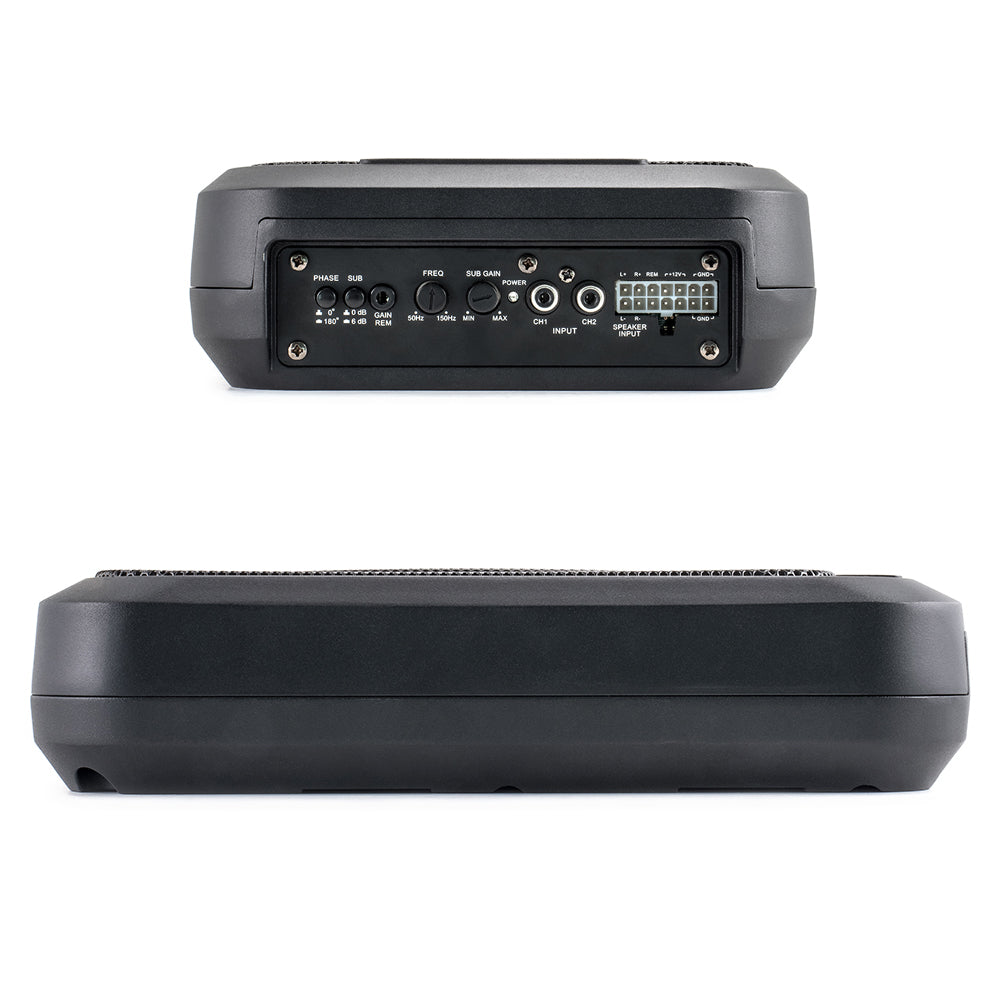

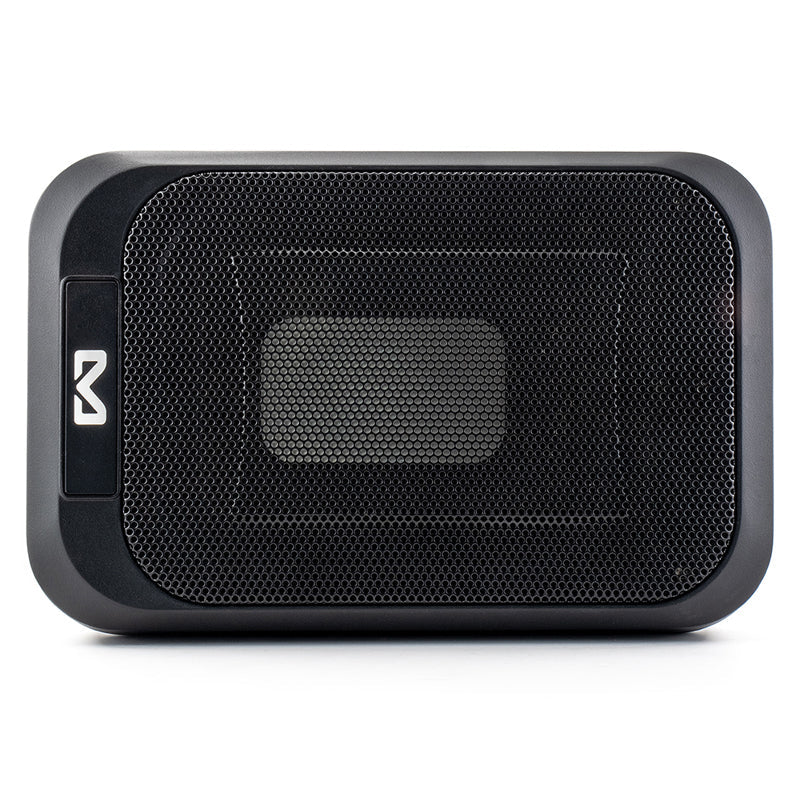

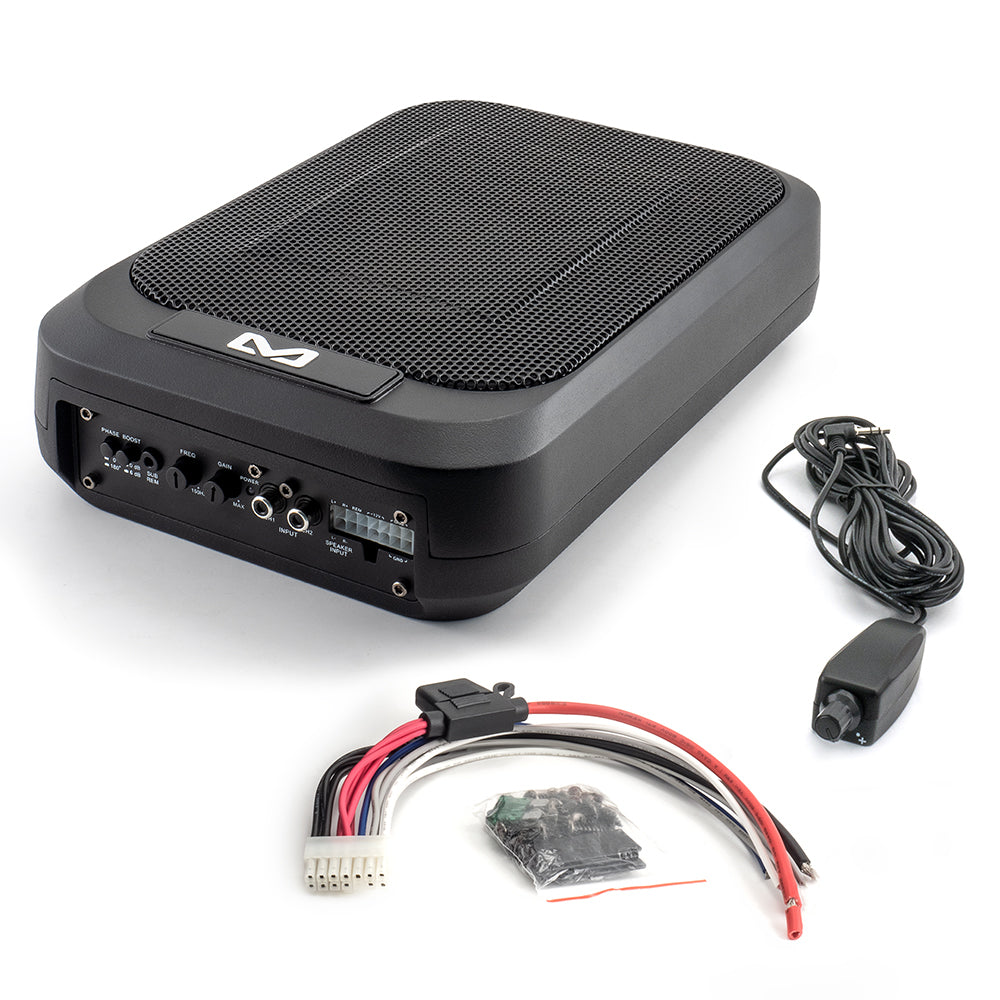

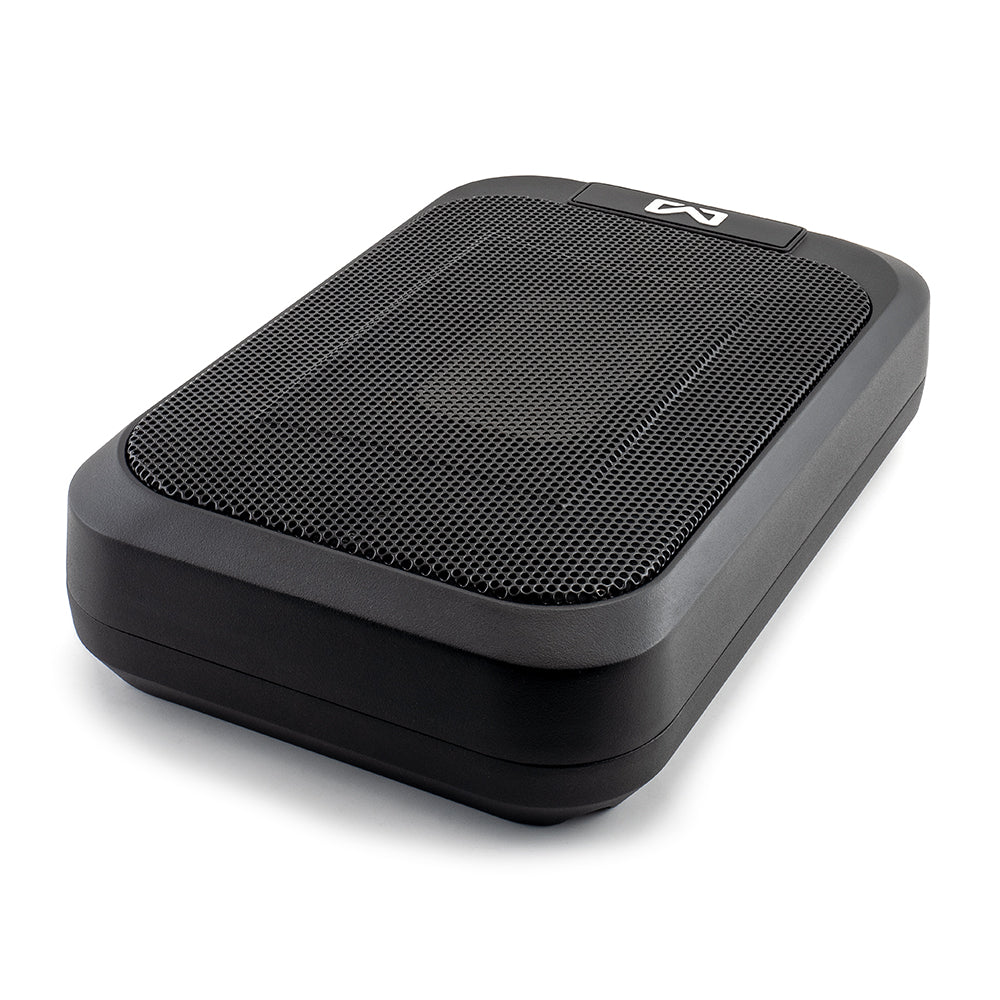

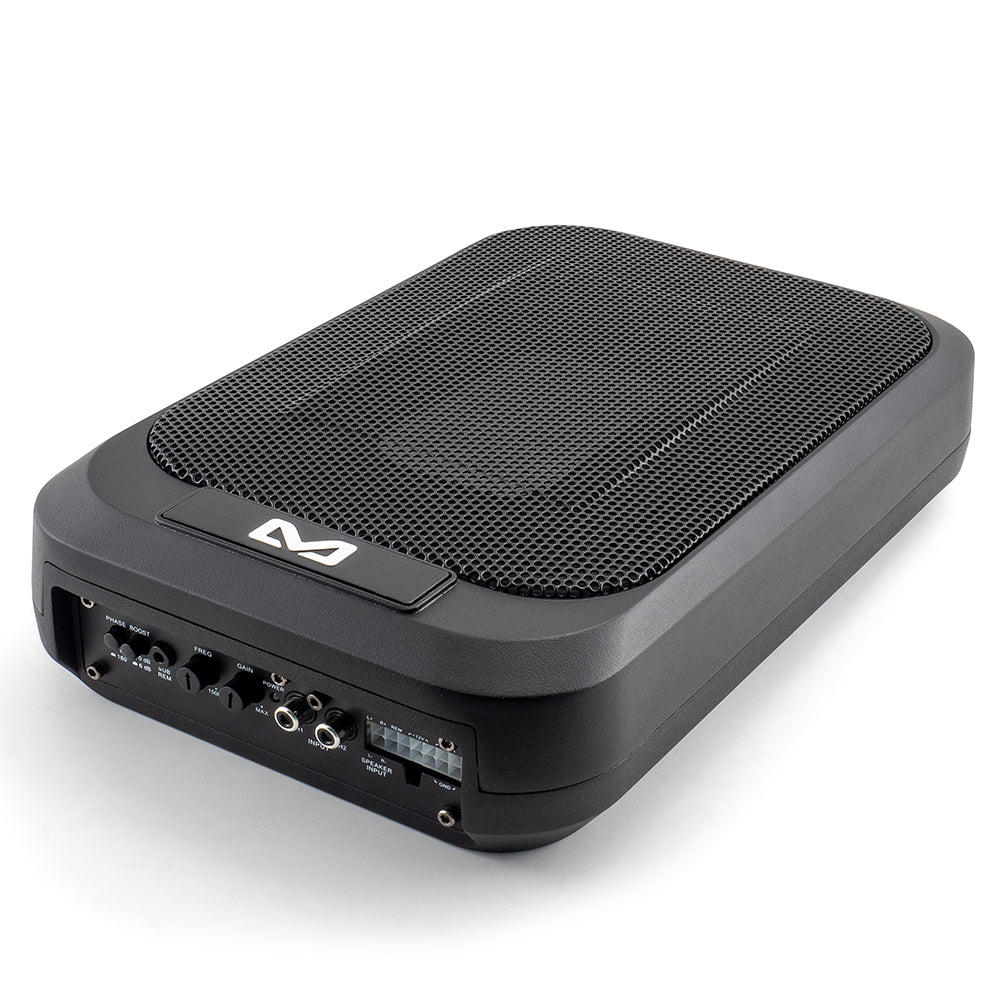

Ultra-slim aluminum enclosure with a high-performance amplifier and a 7"x9" rectangular chassis. This subwoofer is very stylish because it can be easily placed in tight spaces, such as under the front seats. The decisive advantage of this design is clear: thanks to its compact size and high- and low-level inputs, this active subwoofer can be connected to any existing audio system. The "Auto Turn-On" function of the ACTIVE9-SQ automatically turns on via the speaker inputs.
TECHNICAL DATA
- Die-cast aluminum case, closed
- Speaker diameter: 7"x9" rectangular cone
- Passive cone 4"x7
- Diaphragm surface area 376cmÂł
- Flat stainless steel/nylon diaphragm with rubber rim
- Sinusoidal power: 230 watts RMS Class D
- Music power: 460 watts maximum
- Low-level RCA inputs: 100mV to 10 Volt
- High-level speaker inputs with "Auto Turn-On"
- Low-pass crossover: adjustable 30-180Hz

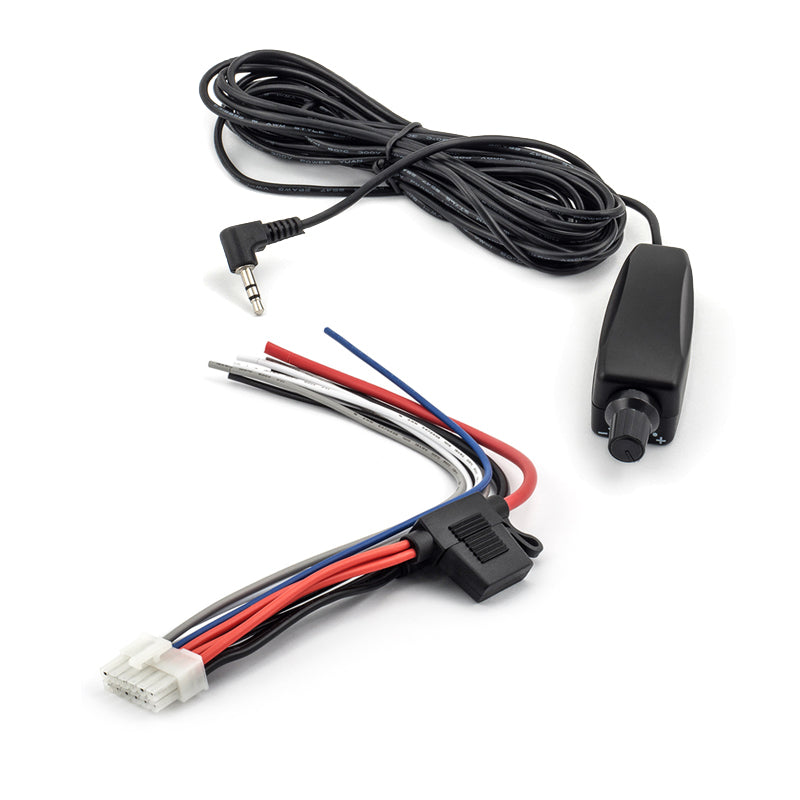

- Low-level remote control
- Switchable 0°/180° phase control
- Frequency range: 30-180Hz.
- Signal-to-noise ratio: 104 dB
- Operating voltage: 8-17 V DC
- ATC 20 A fuse
- Case dimensions: 308 x 70 x 200 mm (W x H x L)
INSTALLATION NOTES
The speakers used are very securely fixed and must be broken in for a few hours before reaching maximum sound pressure.
