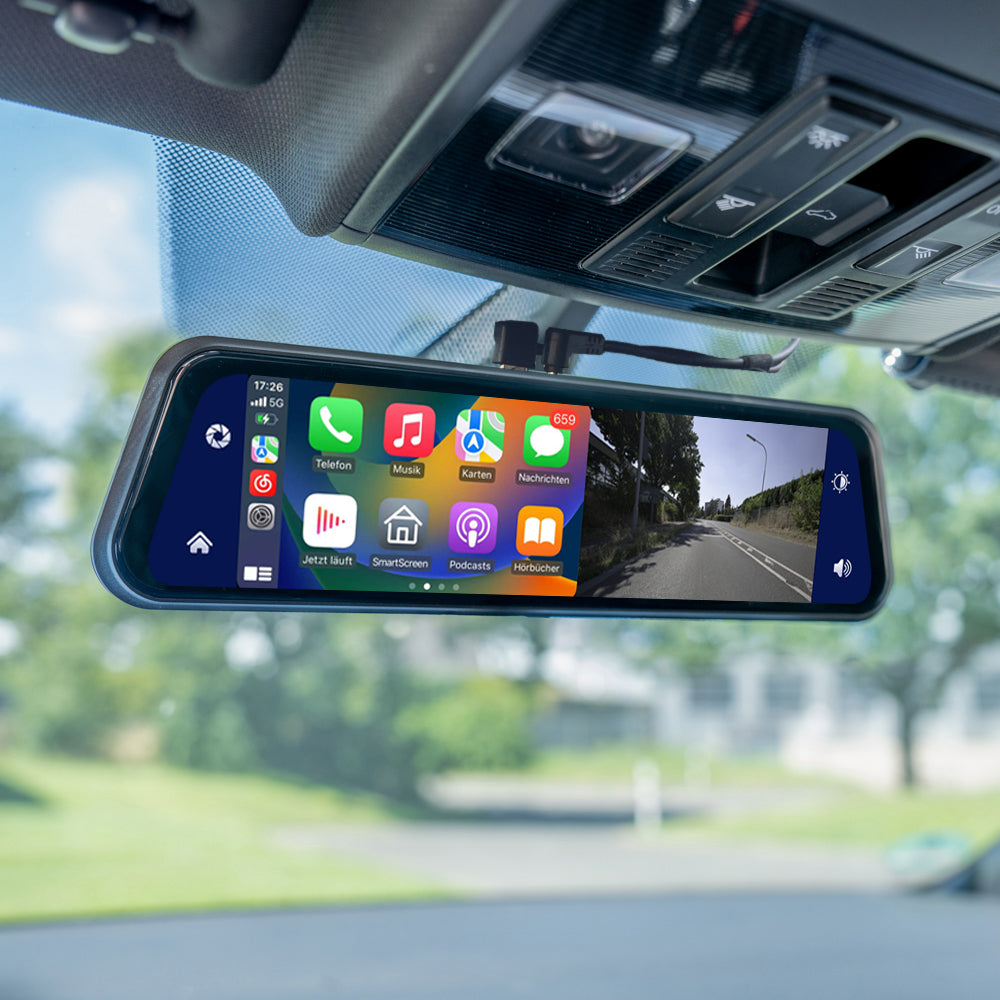

Looking to equip your original car radio with Apple CarPlay or Android Auto without a screen? Then the CPS091 smartphone rearview mirror monitor is exactly what you need. This 9-inch high-resolution touchscreen allows you to integrate your smartphone into almost any vehicle and also displays an optional AHD reversing camera.

Our CPS091 smartphone rearview mirror monitor with integrated smartphone interface is compatible with wireless Apple CarPlay® and Android Auto (please observe minimum requirements), making it a smarter and safer way to use your smartphone in the car.

Everything is controlled via the intelligent voice command Siri or OK Google or on the 9" touch screen, which you can securely attach in front of the rearview mirror with the supplied rubber straps.

Everything you want to do with your smartphone while driving can be done directly on this screen with Apple CarPlay® or Android Auto. You can easily get directions or send and receive messages. While navigating, you can listen to your favorite music, for example via Spotify, or your favorite radio station via a radio app, all while keeping your focus on the road.

Simply connect your smartphone wirelessly via Wi-Fi to our screen and you're good to go. Audio playback is handled through the AUX audio input (3.5 mm jack) of your original car radio. If your vehicle is equipped with factory-installed A2DP audio streaming, you can also send the sound from the CPS091 directly to your radio via A2DP without any detours or loss of quality. Alternatively, an FM transmitter is also integrated, which can send the sound as an FM signal and be received by your car radio. Additionally, a small speaker is built into the unit, which can, for example, play navigation announcements.

TECHNICAL DATA

SCREEN
- 9" IPS LCD touchscreen
- Visible diagonal 8.8" / 22.4 cm
- 36:9 image format
- Touchscreen operation
- Adjustable LED backlight
- Extremely high resolution 1280 x 320
- Brightness 750 cd/m²
- Contrast 1000:1
- Clock frequency 60 Hz
- Vertical viewing angle 130°
- Horizontal viewing angle 150°
- Our monitors comply with ISO 9241-307, pixel error class II

SMARTPHONE INTEGRATION
Wireless Apple CarPlay
Minimum requirement: iPhone 5 and above

Wireless Android Auto
Minimum requirements: Android 11, Android Auto 4.8 and 5 GHz WLAN*.
*IEEE 802.11a, 802.11ac, 802.11ax, 802.11be & 802.11n standards
WARNING! Devices that only have 2.4 GHz WLAN are not supported and are not compatible!

Wireless audio connection
Pair your smartphone with the CPS090, then connect your smartphone to the A2DP input of your car radio. CarPlay or Android Auto audio is then sent directly and without interruption from your smartphone to the car radio* via A2DP.
(*Requires an A2DP-compatible car radio.)

AHD Dashcam
Front camera integrated into the back of the monitor
- High definition analog
- 1080p (resolution 1920 x 1080 pixels)
- Frame rate of 25 fps
- Viewing angle: 120° horizontal, 145° diagonal

Rear camera input system (AHD)
- High definition analog
- 1080p (resolution 1920 x 1080 pixels)
- Frame rate of 25 fps
- 7m harness with included MINI-DIN 4P connector

DVR RECORDER
- Recording resolution: 1080p+1080p or 720p+720p (adjustable)
- Segment duration: 1 minute, 3 minutes, 5 minutes
- Audio recording can be activated
- Parking mode with motion detection and time-lapse recording. Adjustable 12 or 24 hours, low voltage protection at 11.8V
- Memory card type: microSD (not included)
- microSD Speed ​​Class: Class 10 or higher
- microSD memory capacity: min. 32 GB to max. 256 GB
- Recording capacities: 32 GB approximately 4.5 hours, 64 GB approximately 9.5 hours, 128 GB approximately 19 hours, 256 GB approximately 38 hours, then the oldest recordings are overwritten.
- Power-on time (ACC ON): 17 seconds
- Power-on time in parking mode: 0 seconds
- Shutdown timer (ACC OFF): 15 seconds

REARVIEW CAMERA (AHD) INLET
- The system's rear camera input is used as a reversing camera.
- 12-volt switching input for activation
- Immediate switching to the full-screen rear camera with auxiliary lines when reverse gear is engaged
- Individually adjustable auxiliary lines
- 3-second delay when reverse gear is disengaged
- The dashcam recording function is not interrupted in reversing camera mode
- Normal image playback/adjustable mirror

AUDIO OUTPUT
- Stereo audio output with 3.5 mm jack cable
- A2DP audio streaming of all CarPlay and Android Auto content directly from your smartphone. No additional app is required. - FM transmitter for alternative sound playback (87-108 MHz).
- Built-in 2-watt speaker with its own enclosure

OTHERS
- LINUX 4.9 OS operating system with 1 GB of memory
- Apple CarPlay and Android Auto in full-screen mode, or in half-screen mode with simultaneous display of a camera (selectable)
- SD card reader (Mirco SD)
- USB-C input for power
- USB-C wired power adapter with ACC power logic
- Menu languages: DE, EN, CN, RU, ES, FR, IT, PT, JPN and KOR
- Automatic activation when operating voltage is applied
- Operating voltage 9V - 36V DC
- Current consumption ACC ON: 590mA@12VDC
- Current consumption ACC OFF: 8mA@12VDC
- Current consumption in parking mode: 250mA@12VDC
- Operating temperature: -20° to 70°C
- Storage temperature: -30° to 80°C
- Monitor dimensions (without stand): 260 x 73 x 23 mm (40 mm with front camera)
- Monitor weight with stand: 328 g

DELIVERY CONTENTS
- 9" (22.9 cm) touchscreen monitor
- Two special elastic bands
- USB-C power cable with +12V, ground and ignition (ACC), 320 cm
- Connection cable for rear camera system, 550 cm
- Audio output connection cable (3.5 mm jack), 120 cm
